62311-2RS1 Deep Groove Ball Bearing 62305 62306 62307 62308 62309

Single Row Deep Groove Ball Bearings are widely used in household appliances, toys, electric power tools, car motors and other fields. With optimal design, high reliability heat treatment, precision manufacturing processes and high-grade grease, these products perform better on reliability, vibration and noise levels than standard products making them more suitable for electric motor applications. These products can also be applied to most gearbox applications as well.

Classification :

Deep Groove Ball Bearings

+8615865730123

jito@jitobearings.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

Deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages.

It mainly bears pure radial loads, but also can bear joint loads. When it is subjected to pure radial load, its contact Angle is zero. When it has a larger radial game, that is, it has angular contact bearing performance, which can withstand a larger axial load. Deep groove ball bearing has small friction coefficient and high limit speed, so it has more advantages than thrust bearing when axial load is rotating at high speed. But because its aligning performance is limited, the concentricity of bearing installation should be high, otherwise it will affect the balance of its operation, increase the bearing stress, and thus shorten the working life.

Deep groove ball bearing simple structure, compared with other easy to achieve high precision, so can be mass production. In addition to the conventional models, it also has a variety of structural variations, such as deep groove ball bearing with dust cover, deep groove ball bearing with rubber ring and deep groove ball bearing with a stop groove and so on.

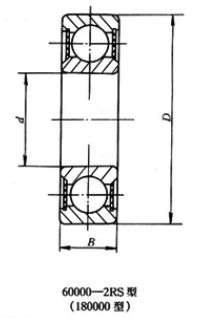

Model	d mm	D mm	H mm	Dynamic	Static	W kg
62300	10	35	17	8.2	3.5	0.073
62301	12	37	17	9.7	4.2	0.0814
62302	15	42	17	11.4	5.45	0.105
62303	17	47	19	13.5	6.55	0.146
62304	20	52	21	15.9	7.9	0.195
62305	25	62	24	21.2	10.9	0.306
62306	30	72	27	26.7	15.0	0.478
62307	35	80	31	33.5	19.1	0.647
62308	40	90	33	40.5	24.0	0.885
62309	45	100	36	53.0	32.0	1.156
62310	50	110	40	62.0	38.5	1.498
62311	55	120	43	71.5	45.0	1.918
62312	60	130	46	82.0	52.0	2.422

FACTORY APPEARANCE

We have completely production line, and are always strictly controlling each process of production, from raw material making, turning to heat treatment, from grinding to assembly, from cleaning, oiling to packing etc. The operation of each process is very meticulously. In the process of production, through self-inspection, follow inspection, sampling inspection, full inspection, such as strict as quality inspection, it made all the performances reached the international standard.

PACKING AND SHIPPING

JITO bearing with long life, high precision and high performance won the trust of our customers, we will make persistent efforts to create more value and wealth for customers. Welcome hand in hand with JITO company, to create beautiful tomorrow！

CERTIFICATIONS

The company has passed ISO9001:2015 and IATF/16949:2016 quality management system certification and ISO14001 environmental system certification, has dozens of invention patents and new utility patents.

APPLICATION AREAS

JITO products are widely used in cars, buses, trucks, engineering vehicles, Forklift gantry, agricultural machinery, paper-making, power-generation, mining, metallurgy, machine tools, petroleum and railway etc.
